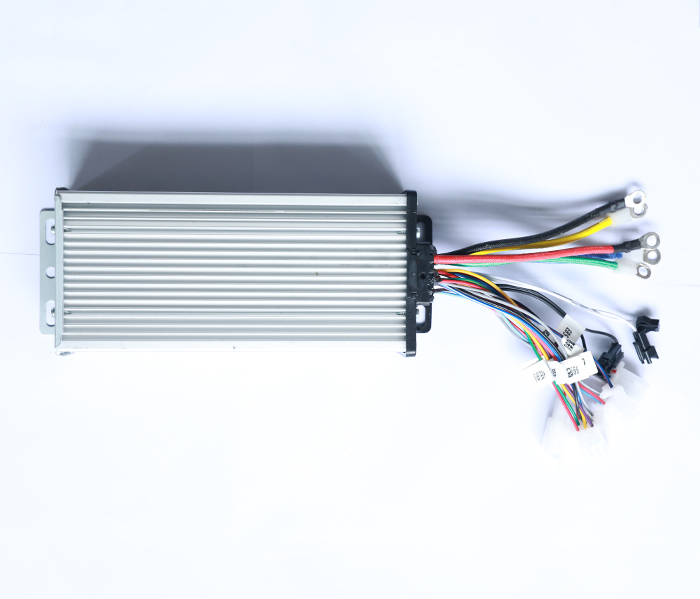

JKY60V650W
Product introduction
Product model | JKY48V650W | JKY60V650W | JKY72V650W |
parameter | |||
Input voltage range（DC/V） | 42-62 | 62-75 | 63-92 |
Rated current（DC/A） | 35A | 33A | 30A |
Rated power（W） | 650W | 650W | 650W |
The maximum torque（N·m） | 165 | 165 | 165 |
Operating temperature（℃） | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ |
Protection grade | IP65 | IP65 | IP65 |
Maximum efficiency | 86% | 86% | 86% |
Cooling way | Natural cooling | Natural cooling | Natural cooling |
The weight | 1.1KG | 1.1KG | 1.1KG |
Overall dimensions(mm) | 164*127*54 | 164*127*54 | 164*127*54 |
（L*W*H） |
|
